Product model：CY500Y/CY700Y/CY980Y/CY1200Y
of liquid, paste, sauce and other products in medicine, food, daily chemicals, health products, pesticides, cosmetics and other industriesSuch as mouthwash, honey, cosmetics, soy sauce, oil, fruit juice, drinks, liquid medicine, etc
We can help you find the goods you want by phone
Machine parameters
| Model | CY500Y | CY700Y | CY980Y | CY1200Y |
| Lanes number | 2-8 lanes | 3-12 lanes | 4-16 lane | 5-20 lane |
| Capacity | 25--40 / Max.25-40cycle/min/lane | |||
| Bag size | L 45-160mm W:50-125mm | L 45-160mm W:50-125mm | L 45-160mm W:50-125mm | L 45-160mm W:50-125mm |
| Film width&thickness | Max.500mm,0.07--0.1mm | Max.700mm,0.07--0.1mm | Max.980mm,0.07--0.1mm | Max.1200mm,0.07--0.1mm |
| Measuring Method | 1. Piston pump;2. Peristaltis pump;3. Ceramic pump;4. Rotarc pump | |||
| Sealing type | 4 sides sealing | 4 sides sealing | 4 sides sealingg | 4 sides sealing |
| Cutting type | 1. Straight cutting;2. Zig zag cutting ;3 Continuous Cutting | |||
| Power supply | 1N+PE/50HZ/AC220V/380V/2.8kw | 1N+PE/50HZ/AC220V/380V/4.1kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min |
| Dimension | 950*1470*1750mm | 1153*1654*1750mm | 1415*1686*2130mm | 2220*2210*2600mm |
| Weight | 400kg | 550kg | 650kg | 900kg |
Machine details
Coding device
Diaphragm pump feeder
Horizontal and vertical sealing system (1)
Transverse and longitudinal sealing system 2 (1)
Transverse sealing system
Piston (1)
Piston (2)
Piston pump metering system
internal structure
Color Band Coding (2)
Machine video introduction

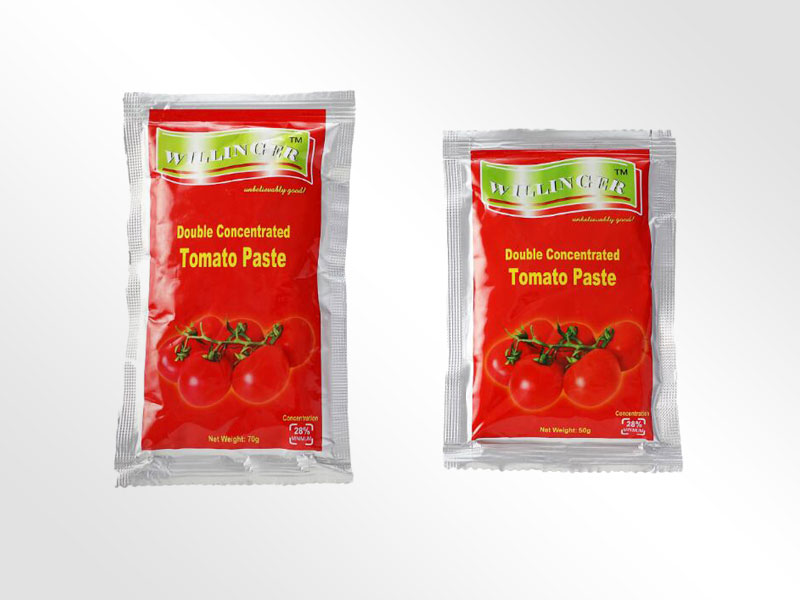

Effect of packaging sample bag
